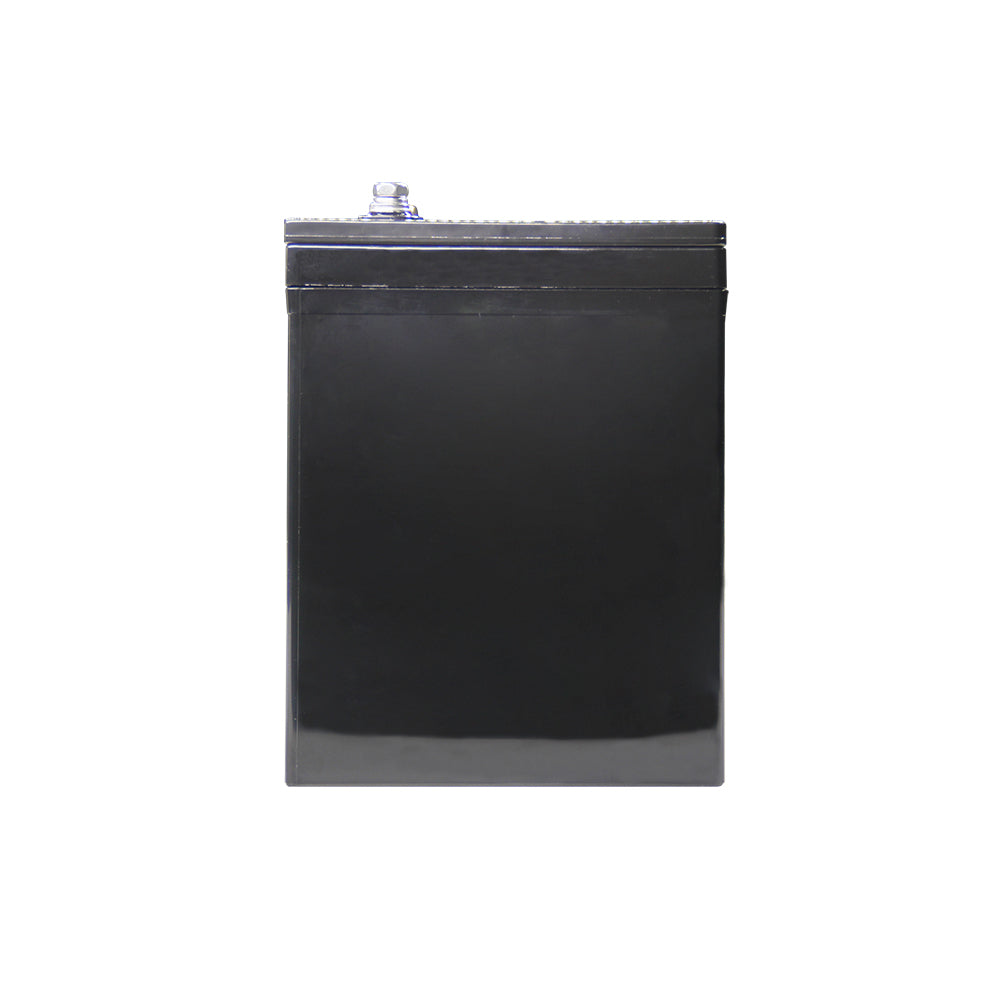

Lithtech LiFePO4 Smart Battery TE12100 | 12.8V 100Ah | BMS Integrated | Support 4S4P | IP67 Protection Level | For RV Marine Golf Cart
The Lithtech Smart Lithium Iron Phosphate Battery enables auto-balance among parallel and series strings up directly, providing a moreflexible usage application. The integrated smart battery management system (BMS) not only protects...
The Lithtech Smart Lithium Iron Phosphate Battery enables auto-balance among parallel and series strings up directly, providing a moreflexible usage application. The integrated smart battery management system (BMS) not only protects the battery from various abnormal conditions but also monitors and manages the charging/discharging process. Integrate into High/low-temperature protection, ABS reinforceholder, resist vibration design, especially special for bad road conditions and complex usage scenarios, Group 24 size only,10kg weight, longcycle life.
Product Overview
ELECTRICAL SPECIFICATIONS | |
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Capacity @20A | 300min |
Energy | 1280Wh |
Resistance | ≤30mQ @ 50% SOC |
Efficiency | 99% |
Self Discharge | ≤3.5% Per Month |
Maximum Modules in Series or Parallel | 4 |
MECHANICAL SPECIFICATIONS | |
Dimensions[L*W*H] | 260*168*209mm |
Weight | 10KG |
Terminal Type | M8/M6 |
Case Material | ABS |
Enclosure Protection | IP55 |
Cell Type | Prismatic |
Chemistry | LiFePo4 |
Configuration | 4S1P |
Key Features
-
Auto-Balance
Cell balance design inside the Smart BMS, optional active balance -
Ultra-Safety
The Battery management system(BMS) provides comprehensive protection to the battery and manages the charging/discharging process wisely -
4s4p Directly Strings up
The Battery management system(BMS) provides 4 series and 4 parallel hook up at the same time -
Resist Vibration Design
ABS Reinforce Holder, resist vibration design, especially design for those bad road condition -
Lighter and Smaller
260* 168*209mm dimension, 10kg only, easy for lead-acid replacement, maintenance free. -
Multiple Usage Scenarios
RV, Marine, AGV, Golf Cart, Streetlight, etc.
Other Parameter
CHAGE SPECIFICATIONS | |
Remommend Charge Current | 5A-50A |
Maximum Charge Current | 100A |
Recommend Charge Voltage | 14.2-14.6V |
BMS Charge Voltage Cut-off | 15.0V[3.75±0.1V] |
Reconnect Voltage | 14.6V[3.65±0.1V] |
Balancing Voltage | 14.0V[3.5±0.025vpc] |
Balancing Current | 35±5mA |
DISCHARGE SPECIFICATIONS | |
Maximum Continuous Discharge Current | 100A |
Peak Discharge Current | 260A≤5s |
BMS Discharge Current Cut-off | 300A±50A[2.2±1ms] |
Recommend Low Voltage Disconnect | 9.0V |
BMS Discharge Voltage Cut-off | 8.8V[2.2±0.08 vpc] [100±50ms] |
Reconnect Voltage | 10V[2.5±0.1vpc] |
Short Circuit Protection | 200-400μs |
COMPLIANCE SPECIFICATIONS | |
Certifications | CE[Battery], UN38.3[Battery] IEC62133[cell] |
Shipping Classification | UN3480, CLASS9 |
Download
Datasheet
User Manual & Installation Quick Guide
Certification
CE_-TE12100_TE12150_TE12200_1.pdf
