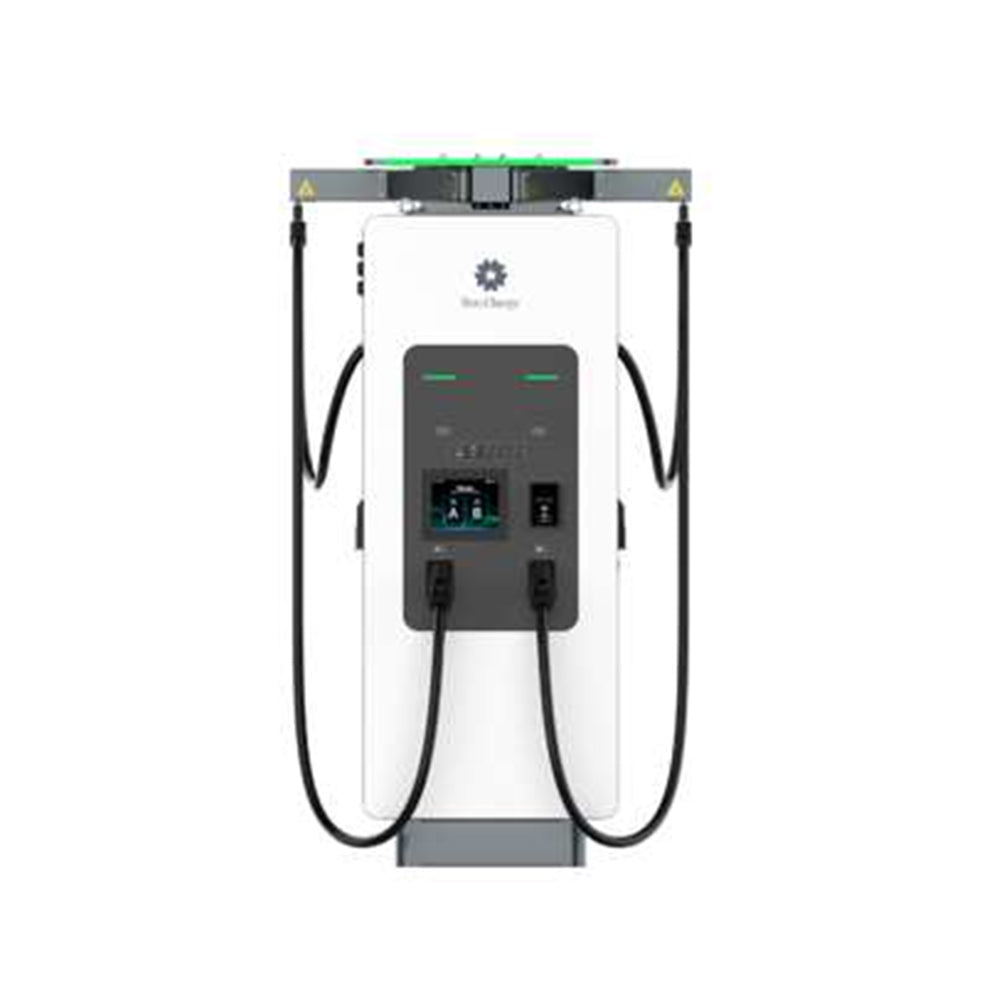

StarCharge Titan V4 320KW DC All-in-One High Power Charger | CCS1+NACS| Excluding Cable Management
• 200-1000Vdc wide output voltage range, compatible with most EV models in market.
• High performance, 97% efficiency & maximum 500A output.
• Flexible configuration, CCS1 and NACS available.
• User friendly Cable Management – easier operation. Light on the top(optional) for clearer indication.
• Connect to any backend based on OCPP protocol.
• Dynamic load management.
See the specs >
Titan V4 is an all-in-one high-power EV charger. It features industry leading power efficiency of 97% that significantly reduces power loss and energy costs while adding 2% to 3% profit to charging station operations. The modular design makes it scalable from 240kw to 320kw in the field and offers high availability to ensure continuous charging service. The dynamic power distribution design enables maximum energy usage and optimal charging speed, enhancing the overall charging service. It’s ideal for public charging station offering 5 to 30 minutes’ drive-through charging services.
Product Overviews:
| Manufacturer | StarCharge |
| Type | DC EV Charger |
| Max. output power |
320kW max.(80kW as an increment)
|
| Max. output current |
CCS1: 400A rating.
NACS: 380A rating (All support 500A output for a short time) |
|
Dimensions(W*H*D) |
2.62*7.22*2.46 inch, 800*2200*750mm (with cable management system) |
| Weight | Approx. 1080 lbs ( 490 kg ) (excluding power modules) |
| Installation | Ground mounting |
| Certificate |
FCC part 15 Class A, UL 2202, UL 2231-1, UL 2231-2, Energy Star, CTEP
|
| Warranty |
2 Years Option up to 5 years total with cost. |
Key Features:
-
200-1000Vdc wide output voltage range, compatible with most EV models in market.
-
High performance, 97% efficiency & maximum 500A output.
-
Flexible configuration, CCS1 and NACS available.
-
User friendly Cable Management – easier operation. Light on the top(optional) for clearer indication.
-
Connect to any backend based on OCPP protocol.
-
Dynamic load management.
Product Specifications
-
Input Rating: 400Vac, 3 phases, 50/60Hz, L1+L2+L3+N+PE (Neutral Optional)
-
Output Interface: CCS1+NACS
-
Output Voltage: 200-1000Vdc
-
Cable Length: 16.4’ (5m) or 19.7’ (6m) (optional)
- NEMA Enclosure: Type 3R
-
Network Interface: 4G, Wi-Fi, Ethernet
Datasheet
StarCharge_240624_EVSE_Datasheet_TitanV4_320KW.pdf
Manuals & Guides
Titan 320_V4_UL_User_Manual.pdf
Certificates
StarCharge_Titan_320_240_UL_US_Ce.pdf
Warranty
StarCharge_Product_Warranty_2024.pdf
ABOUT StarCharge
StarCharge is a global leader in electric vehicle (EV) charging infrastructure and microgrid solutions.
With an impressive track record of delivering up to 2 million EV chargers, StarCharge is ranked No. 1 globally in terms of cumulative sales volume over the past decade. The company’s commitment to excellence in manufacturing is evident through its state-of-the-art facilities and a robust workforce of 4500 professionals, which includes a dedicated R&D team of over a thousand experts.
StarCharge offers a diverse range of intelligent and reliable charging and energy solutions powered by cutting-edge technology, designed to cater to various scenarios and contribute to building a more efficient and resilient energy future.
