Fox ESS PowerQ AIO 11.4-EQL2 All-in-One Home Energy Storage System (With Fox Hub G2) | 11.4kW Split-phase Output with 8kWh capacity | Split-Phase Hybrid | AC Couple and DC Couple | Certificated UL9540 CEC Listed
- Hybird PV Input Up to 22.8kW per PowerQ
- LFP Battery, Up to 20kWh per PowerQ
- Scalable Up to 4 Units, Totally Up to 80kWh Backup Capacity
- Both Wi-Fi & 4G Communication Available
- LRA Up to 110A
- Multiple Energy Operation Modes
- Compatible with Generator with Fox Hub G2
See the specs >
The Fox PowerQ energy storage system is a whole home energy solution for residential users. The three key components are Fox PowerQ which can convert solar energy to AC energy and store energy into battery, and FOX Hub G2 which is an energy management unit for whole-home power control. Users can monitor and operate their storage system remotely via the FoxCloud US mobile phone app.
Fox ESS PowerQ is the latest generation of an integrated residential energy storage system. With up to 80kWh total backup capacity, PowerQ is designed to meet various backup scenarios via modular system design and scalability.
Product Overview
Total energy | 7.94kWh |
Module Qty | 1 Hybrid inverter+2 Battery modules + 1 Base |
Max. Continuous power | 11.4kW |
Max. Output power Without PV | 5.76kW |
Max. solar STC power | 22.8kW |
Max. PV input voltage | 600V |
Easy Scalable | Max to 5 Modules up to 19.85kWh |
Dimensions(W*H*D) | 22.4*33.4*15 inch (570*848*380 mm) |
Weight | Inverter: 112.44 lbs/51 kg Battery module: 81.35 lbs/36.9 kg Base: 7.72 lbs/3.5 kg Total: 282.9 lbs/128.3 kg |
Mounting | Ground mount |
Safety and EMC |
UL9540A, UL9540, UL1973, UL1741 SA, UL 1741 SB, UL1741 CRD, CSA C22.2 No.107.1-16, UL1998, UL1699B, HECO SRD-V2.0; IEEE1547-2018, IEEE1547a-2020, IEEE1547.1-2020, Rule21; FCC part15 CLASS B |
Warranty | 12.5 Years |
Key Features
- Hybird PV Input Up to 22.8kW per PowerQ
- LFP Battery, Up to 20kWh per PowerQ
- Scalable Up to 4 Units, Totally Up to 80kWh Backup Capacity
- Both Wi-Fi & 4G Communication Available
- LRA Up to 110A
- Multiple Energy Operation Modes
- Compatible with Generator with Fox Hub G2

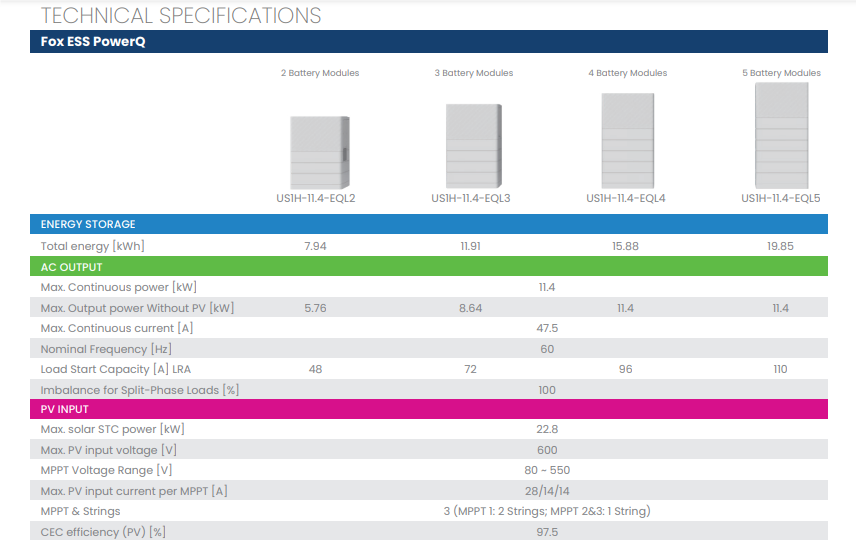

Product Specifications
- Max. PV input voltage: 600V
- MPPT Voltage Range: 80 ~ 550V
- Max. PV input current per MPPT: 28/14/14
- MPPT & Strings: 3 (MPPT 1: 2 Strings; MPPT 2&3: 1 String)
- Max. Continuous AC Out current : 47.5A
- CEC efficiency (PV): 97%
- Enclosure rating: Type 4X
- Cooling Method: Natural convection
- Display: LED, App, Website
- Communication Protocol: WiFi, 4G, LAN
- Interface: CAN2.0, RS485, Meter, CT, ISO alarm, SUNSPEC
Shipping and Packaging
- The battery can only ship via freight truck
