FranklinWH Home Energy Management System | aPower + aGate + FranklinWH App | 12-year limited warranty | UL869A / UL67 certified safety

FranklinWH Home Energy Management System is an innovative smart home energy solution. It allows customers to store energy, manage their energy sources more efficiently, and take full advantage of their solar systems. The three primary components of the FranklinWH system are aGate, aPower and FranklinWH App .

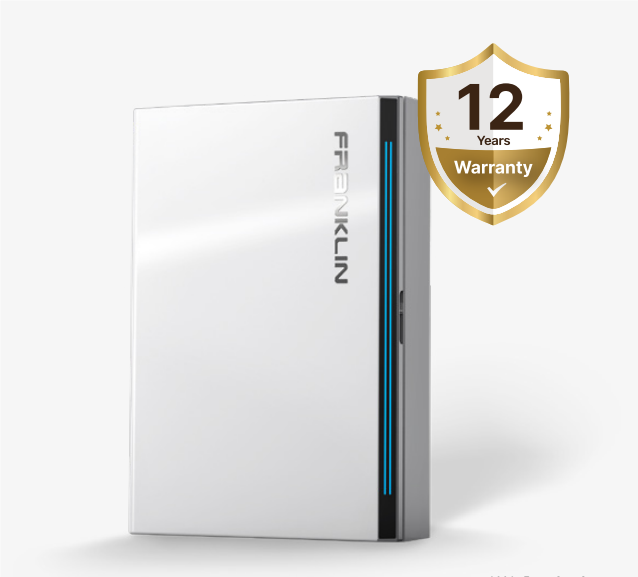

Product Overview - aGate

• Smart Circuits Module


Manual or scheduled control over unique individual electric circuits connected with particular devices, managed via the FranklinWH App.

• Generator Module


Integrate generators into home power supply, alongside aPower, solar systems, and the grid. This module also supports V2L function, and customers can select which equipment to use as an additional power source.

• Main Load Relay


Enhanced reliability for black starts, to return power to home when solar power returns after the battery has been drained by long outages.

Datasheet - aGate

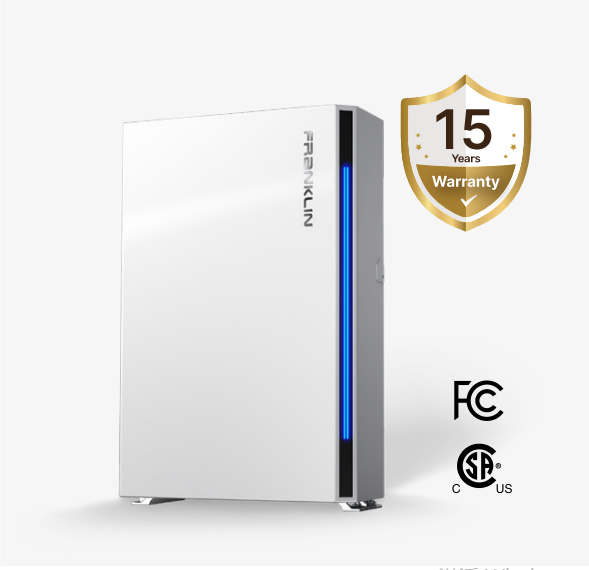

Product Overview - aPower

The FranklinWH aPower is an AC-Coupled battery energy storage system (BESS) which contains a battery, a battery management system, and a power conversion system. That power can them be used to lower electric bills and to run heavy loads such as air conditioners and water heaters even during grid outages. The system also provides homeowner peace of mind by fully charging aPower batteries before severe weather events.

Datasheet - aGate

Product Overview - FranklinWH App

The FranklinWH App allows remote monitoring and management of your whole home energy management system at any time, from anywhere.

Performance

Key Features

• Scalable up to 15 aPower batteries per aGate
• AC-coupled, safe LFP battery
• Smart management of power sources
• 15 kWh capacity per battery
• Easy integration with solar, grid and generator, and EV
• On- and off-grid enabled
• Smart Circuits and black-start capabilities
• Intelligent load shedding & shifting
• Easy control and monitoring via mobile app
• 15-year warranty with 60 MWh throughput

Key takeaways

• Net Billing Tariff (NBT): Ready to optimize energy savings
• Enhanced PV compatibility, supports 7.6 kW solar generation with one aPower
• Commissioning through the aGate Wifi hotspot or Bluetooth
• Redefines easy commissioning, completed within 15 Mins
• Industry-leading battery solution for 240 V / 208 V residential
• Unlock Vehicle to loads (V2L) functionality allows users to power the home from the EV
• Black start ensures battery charge after a prolonged outage or extended trip
• UL869A / UL67 certified safety
• Two aPowers can be connected via a quad breaker with no combiner needed

Download
Datasheet
aPower_1.3_Datasheet_SKU__APR-05K13V1-US.pdf
aGate_1.3_Datasheet_SKU__AGT-R1V2-US.pdf
aPower_2_Datasheet_SKU__APR-10K15V2-US.pdf

User Manual & Quick Installation
System_User_Manual_aGate_1.3_aPower_2.pdf
Quick_Installation_Guide_aGate_1.1_aPower_1.3.pdf
FranklinWH_System_One_Pager_aGate_1.3_aPower_1.3.pdf

Compatibility
Compatibility_Matrix.pdf

Warranty
Warranty_US_CA.pdf

About FranklinWH

FranklinWH is focused on energy management solutions providing safety, reliability and energy independence for homes. Franklin Home Power (FHP) is a whole-home energy management system integrating solar, battery, grid and generator power sources and managing them to optimize the safety, reliability and efficiency of home energy. The FHP is designed for simplicity and is easy to install, maintain and operate.

FranklinWH is a research-driven company focused on next-generation residential energy management and storage solution. Founded in 2019, headquartered in the San Francisco Bay Area, FranklinWH’s team has decades of experience in energy systems, from design, through manufacturing, to sales and installation. We are also AVL listed with multiple financial institutions.
