GoodWe Automatic Backup Device ABD200-40/63-US10 | 120/240V Split Phase | Compatible with GoodWe ES-US and SBP-US | Certificated UL1741
- 24/7 Whole Home Backup
- High precision of load monitoring
- Perfect compatibility with ES-US & SBP-US
- Low voltage ride through
✓ Lowest Price and Price March Guaranteed
See the specs >

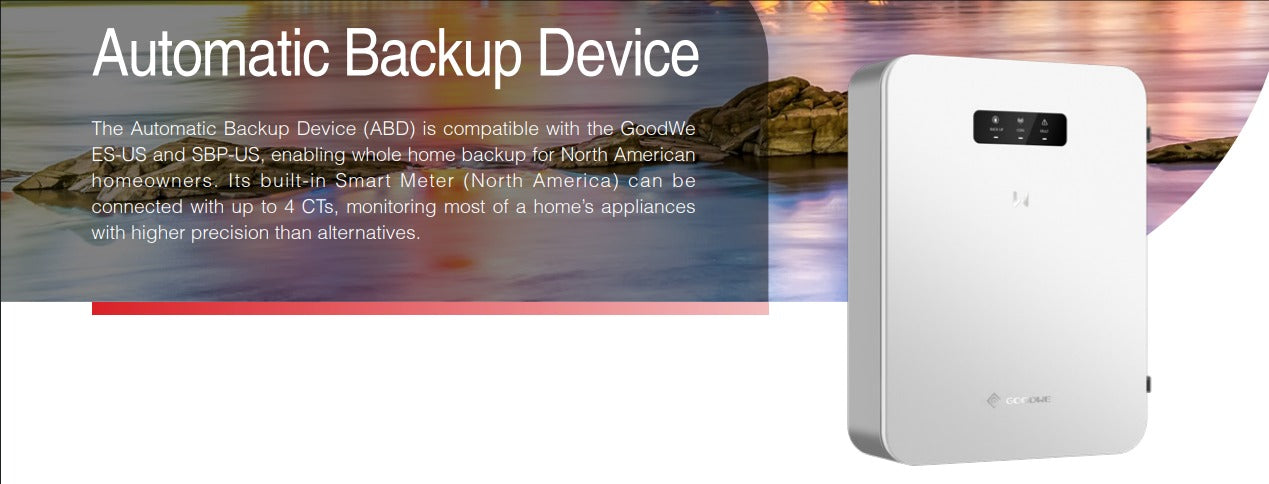

The Automatic Backup Device (ABD) is compatible with the GoodWe ES-US and SBP-US, enabling whole home backup for North American homeowners. Its built-in Smart Meter (North America) can be connected with up to 4 CTs, monitoring most of a home’s appliances with higher precision than alternatives.
Product Overview
| Manufacturer | GOODWE |
| Model | Automatic Backup Device ABD200-40/63-US10 |
| Nominal Output Voltage (V) |
240 |
| Output Voltage Range (V) | 211 ~ 264 |
| Feed-in Type | Split Phase |
| Nominal AC Voltage of Line Conductor (V) | 120 / 240 |
| Current Rating (from Grid)(A) | 200 |
| Maximum Overcurrent Protection of Main Breaker (A) | 200 |
| Maximum Overcurrent Protection of Circuit Breaker of Inverter (A) |
40/63 |
| Ingress Protection Rating | Type 3R, IP44 |
| Operating Temperature Range | -13°F ~ 140°F (-25°C ~ 60°C) |
| Cooling Method | Natural Convection |
| Max. Operating Altitude | 9842ft (3000m) |
| Warranty | 5 Years |
| Certificate | UL1741 |
Key Features:
- 24/7 Whole Home Backup
- High precision of load monitoring
- Perfect compatibility with ES-US & SBP-US
- Low voltage ride through
Product Specifications:
GENERAL DATA
- Dimensions(W*H*D): 17.7 × 24 × 5.9 in (450 × 610 × 150 mm)
- Weight: 26lb (12kg)
- Installation: Wall Mounted
Download
Datasheet
GW_ABD-North_America_Datasheet-EN.pdf
User manuals
GW_ABD_MPD_User_Manual-EN.pdf
Certificate
GW_ABD_ATD_MPD_Ceritificate_1_-UL1741.pdf
About GOODWE
GoodWe is a world-leading PV inverter manufacturer and smart energy solution provider that was founded in 2010. The company was listed on the Shanghai Stock Exchange (Stock Code: 688390) in 2020, solidifying its corporate reputation as a company that achieves sustainable growth in all markets it operates in.
GoodWe offers a wide range of inverters, spanning from 0.7kW to 350kW, catering to various solar system sizes and applications. With a long-standing and strong presence in the solar market, GoodWe's PV inverters have been installed in over 100 countries, with a cumulative installation of 52 GW.
With a team of over 1000 professional R&D employees, GoodWe is constantly innovating and expanding its product portfolio to ensure that production capacity and quality are consistently high. Currently, Goode employs more than 5000 individuals across 20 countries and was ranked as a global top three hybrid inverter supplier by Wood Mackenzie in 2021.
