StarCharge Neptune Natural Cooling Dispenser 400KW DC Charging System | CCS1+NACS| Cablnet not including
• Max. 400A output current.
• Up to 400 kW output power per connector.
• 150-1000Vdc wide output voltage range.
• Great scalability, up to 4 charging points per power cabinet.
• Support two cabinets connected in parallel.
See the specs
StarCharge Neptune Charging System is an all-in-one high-power EV charger. It features industry leading power efficiency of 97% that significantly reduces power loss and energy costs while adding 2% to 3% profit to charging station operations. The modular design makes it scalable from 200kw to 480kw in the field and offers high availability to ensure continuous charging service. The dynamic power distribution design enables maximum energy usage and optimal charging speed, enhancing the overall charging service. It’s ideal for public charging station offering 5 to 30 minutes’ drive-through charging services.
Product Overviews:
| Manufacturer | StarCharge |
| Type | DC EV Charger |
| Output power |
400kW max. / connector
|
|
Output Voltage
|
150-1000Vdc
|
| Output current |
250A (400A max. ) / connector
|

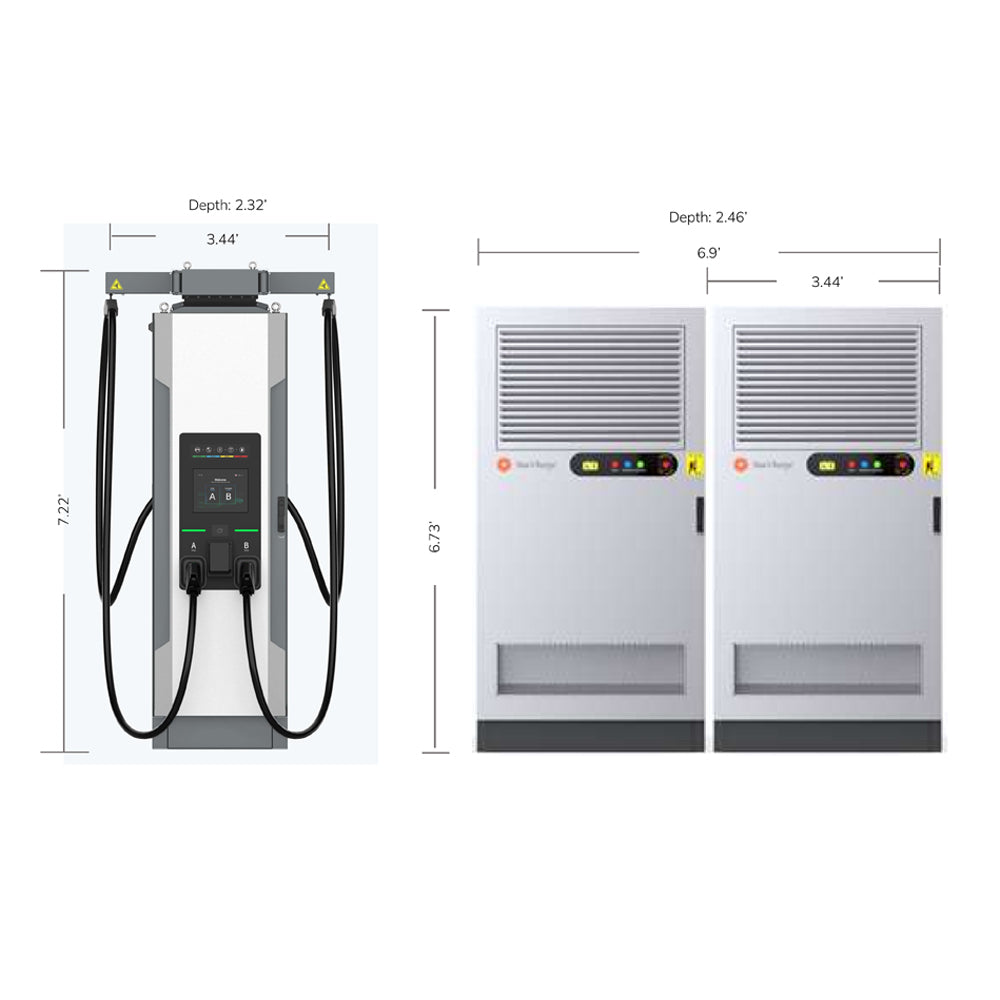

| Dimensions(W*H*D) | 3.44 x 7.22 x 2.32’ (1050*2200*707mm) |
| Weight | Approx. 507.06 lb (230kg) |
| Installation | Ground mounting |
| Certificate |
FCC part 15 Class A, UL 2202, UL 2231-1, UL 2231-2, Energy Star, CTEP, UL 1998, UL991,
TUV, FCC, Energy Star, CTEP, OCA (On-going)
|
| Warranty |
2 Years Option up to 5 years total with cost. |
Key Features:
-
Max. 400A output current.
-
Up to 400 kW output power per connector.
-
150-1000Vdc wide output voltage range.
-
Great scalability, up to 4 charging points per power cabinet.
-
Support two cabinets connected in parallel.
Product Specifications
-
Protocol (EVSE&Backend): OCPP 1.6J
-
Output Interface: CCS1+NACS
-
Output Voltage: 150-1000Vdc
-
Cable Length: 19.7’ (6m)
-
IP Rating: IP55 / NEMA 3R
-
Network Interface: 4G/Wi-Fi for backend connection and Ethernet for Power Cabinet local connection
Datasheet
StarCharge_240624_EVSE_Datasheet_Neptune.pdf
Manuals & Guides
SrarCharge_Neptune_UL_User_manual.pdf
Certificates
StarCharge_Neptune_UL_US_Ce.pdf
Warranty
StarCharge_Product_Warranty_2024.pdf
ABOUT StarCharge
StarCharge is a global leader in electric vehicle (EV) charging infrastructure and microgrid solutions.
With an impressive track record of delivering up to 2 million EV chargers, StarCharge is ranked No. 1 globally in terms of cumulative sales volume over the past decade. The company’s commitment to excellence in manufacturing is evident through its state-of-the-art facilities and a robust workforce of 4500 professionals, which includes a dedicated R&D team of over a thousand experts.
StarCharge offers a diverse range of intelligent and reliable charging and energy solutions powered by cutting-edge technology, designed to cater to various scenarios and contribute to building a more efficient and resilient energy future.
